DataExport 를 이용해 처리합니다.

using Steema.TeeChart.Export;
using Steema.TeeChart.Styles;
using Steema.TeeChart.Tools;

namespace Win.TeeChartLegendClickTest
{
    public partial class ChartForm : Form
    {
        public ChartForm()
        {
            InitializeComponent();

            // Set SampleData
            for (int i = 0; i < 10; i++)
            {
                Points points = new Points(this.tChart.Chart);
                points.XValues.DateTime = true;

                points.FillSampleValues(20);
            }
        }

        private void ExcelButton_Click(object sender, EventArgs e)
        {
            // Save Excel
            string fielPath = "d://test.xls";
            DataExport dataExport = new DataExport(this.tChart);
            ExcelFormat excelFormat = dataExport.Excel;

            excelFormat.IncludeHeader = true;
            excelFormat.IncludeIndex = true;
            excelFormat.IncludeLabels = true;

            excelFormat.Save(fielPath);
        }
    }
}

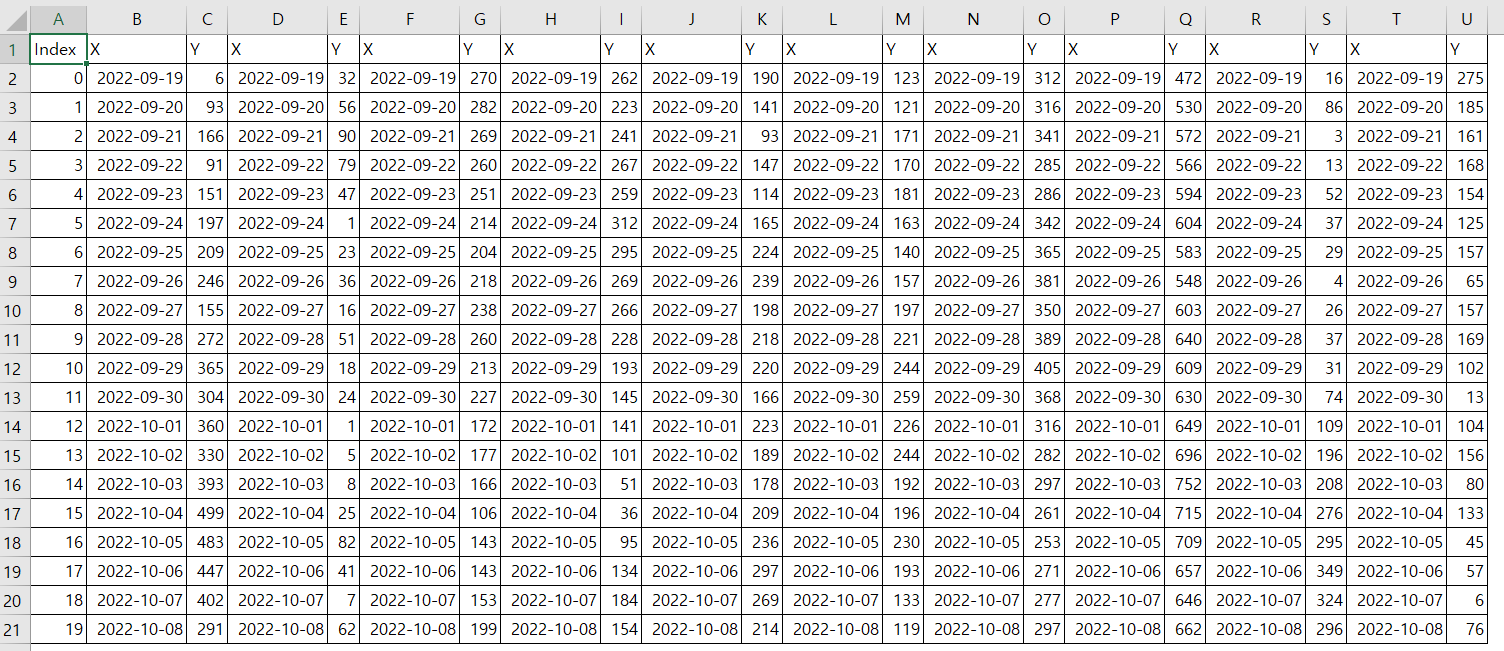

저장내용



[Source]
https://github.com/kei-soft/Win.TeeChartTest
