[.NET MAUI] Frame GestureRecognizers 처리하기 (MVVM)

Frame을 클릭했을 때 Command 연결하여 처리하는 방법입니다.

MainViewModel.cs

using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Windows.Input;

namespace FrameTapGestureRecognizerTest
{
    public class MainViewModel : INotifyPropertyChanged
    {
        #region INotifyPropertyChanged
        public event PropertyChangedEventHandler PropertyChanged;
        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
        #endregion

        #region Properties

        private bool isBusy = false;

        public bool IsBusy
        {
            get
            {
                return isBusy;
            }
            set
            {
                isBusy = value;
                OnPropertyChanged();
            }
        }

        private string test;

        public string Test
        {
            get
            {
                return test;
            }
            set
            {
                test = value;
                OnPropertyChanged();
            }
        }

        #endregion

        #region Commands
        public ICommand MenuClickCommand => new Command(() => OnMenuClickCommand());

        #endregion

        // Constructor
        #region MainViewModel
        public MainViewModel()
        {
        }
        #endregion

        // Command Methods
        #region OnMenuClickCommand
        private async void OnMenuClickCommand()
        {
            await Application.Current.MainPage.DisplayAlert("frame 선택", "TapGestureRecognizer Tapped", "OK");

            await Task.Run(() => { this.IsBusy = true; Thread.Sleep(2000); this.IsBusy = false; });
        }
        #endregion

        // Methods
    }
}

MainPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage
    x:Class="FrameTapGestureRecognizerTest.MainPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:viewmodel="clr-namespace:FrameTapGestureRecognizerTest">

    <ContentPage.BindingContext>
        <viewmodel:MainViewModel />
    </ContentPage.BindingContext>

    <StackLayout>
        <Grid BackgroundColor="White">

            <Frame
                Margin="3"
                Padding="10,0"
                BackgroundColor="#0D2339"
                BorderColor="#002E5C"
                CornerRadius="0"
                HasShadow="False"
                HeightRequest="100"
                VerticalOptions="Center">
                <Frame.GestureRecognizers>
                    <TapGestureRecognizer Command="{Binding MenuClickCommand}" />
                </Frame.GestureRecognizers>
                <Label
                    HorizontalOptions="Center"
                    HorizontalTextAlignment="Center"
                    Text="TapGestureRecognizer Test"
                    TextColor="White"
                    VerticalOptions="Center"
                    VerticalTextAlignment="Center" />
            </Frame>

            <ActivityIndicator
                HeightRequest="100"
                IsRunning="{Binding IsBusy}"
                WidthRequest="100"
                Color="Yellow" />

        </Grid>
    </StackLayout>
</ContentPage>

xaml 단에서 BindingContext 를 정의해 주고 TapGestureRecognizer의 Command에 MenuClickCommand를 연결해 주어 처리하였습니다.

결과

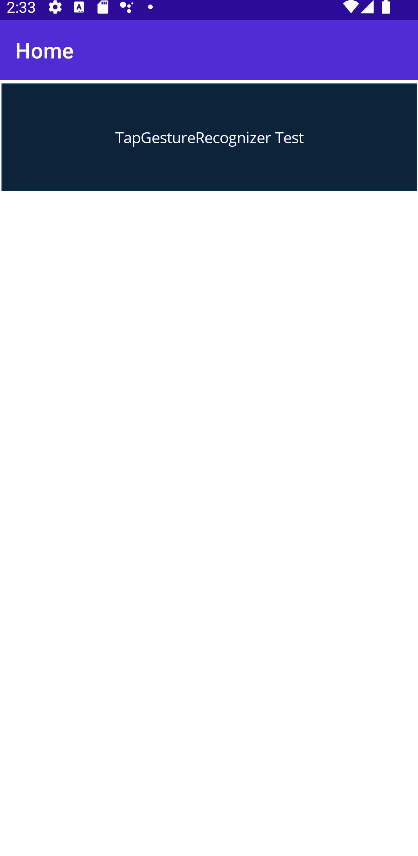

Android

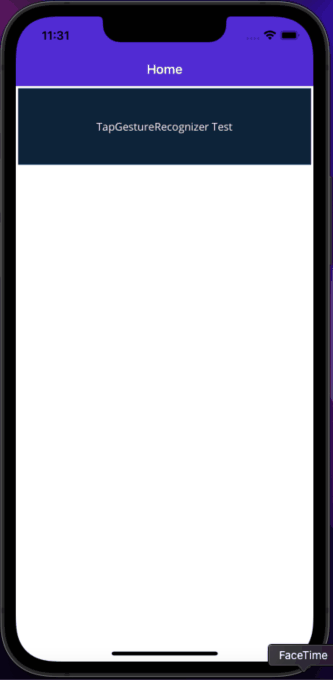

iOS

iOS 는 ActivityIndicator 크기를 조절해도 조그마게 나옵니다;;

[Source]

https://github.com/kei-soft/FrameTapGestureRecognizerTest

GitHub - kei-soft/FrameTapGestureRecognizerTest
