MAUI 에서 SQLite 를 사용하는 방법입니다.
1. Nuget 설치
sqlite-net-pcl
SQLitePCLRaw.bundle_green
SQLitePCLRaw.core
SQLitePCLRaw.provider.dynamic_cdecl
SQLitePCLRaw.provider.sqlite3
2. Model 정의 (StudentModel.cs)
using SQLite;
namespace Maui.SqliteTest.Models
{
public class StudentModel
{
[PrimaryKey, AutoIncrement]
public int Id { get; set; }
public string Name { get; set; }
public string Age { get; set; }
}
}
3. Helper 정의 (StudentHelper.cs)
using Maui.SqliteTest.Models;
using SQLite;
namespace Maui.SqliteTest.Helpers
{
public class StudentHelper
{
private SQLiteAsyncConnection dbConnection;
private async Task ConnectionDB()
{
if (this.dbConnection == null)
{
string dbPath = Path.Combine(Environment.GetFolderPath(Environment.SpecialFolder.LocalApplicationData), "Student.db3");
this.dbConnection = new SQLiteAsyncConnection(dbPath);
// Create Table
await this.dbConnection.CreateTableAsync<StudentModel>();
}
}
public async Task<int> AddStudent(StudentModel studentModel)
{
await ConnectionDB();
return await this.dbConnection.InsertAsync(studentModel);
}
public async Task<int> DeleteStudent(StudentModel studentModel)
{
await ConnectionDB();
return await this.dbConnection.DeleteAsync(studentModel);
}
public async Task<List<StudentModel>> GetStudentList()
{
await ConnectionDB();
var studentList = await dbConnection.Table<StudentModel>().ToListAsync();
return studentList;
}
public async Task<int> UpdateStudent(StudentModel studentModel)
{
await ConnectionDB();
return await this.dbConnection.UpdateAsync(studentModel);
}
}
}
Helper 를 통해 데이터 CRUD 처리가 됩니다.
4. View 구성 (MainPage.xaml / MainPage.xaml.cs)
<?xml version="1.0" encoding="utf-8" ?>
<ContentPage
x:Class="Maui.SqliteTest.MainPage"
xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml">
<ContentPage.Resources>
<Style TargetType="Grid">
<Setter Property="VisualStateManager.VisualStateGroups">
<VisualStateGroupList>
<VisualStateGroup x:Name="CommonStates">
<VisualState x:Name="Normal" />
<VisualState x:Name="Selected">
<VisualState.Setters>
<Setter Property="BackgroundColor" Value="Gray" />
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateGroupList>
</Setter>
</Style>
</ContentPage.Resources>
<Grid
Padding="15,15"
RowDefinitions=" 50,50,50,*,50"
VerticalOptions="FillAndExpand">
<Grid Grid.Row="0" ColumnDefinitions="100,*">
<Label
Grid.Column="0"
Text="Name"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
<Entry
Grid.Column="1"
BackgroundColor="LightGray"
HorizontalTextAlignment="Center"
Text="{Binding Name, Mode=TwoWay}"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
</Grid>
<Grid Grid.Row="1" ColumnDefinitions="100,*">
<Label
Grid.Column="0"
Text="Age"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
<Entry
Grid.Column="1"
BackgroundColor="LightGray"
HorizontalTextAlignment="Center"
Keyboard="Numeric"
Text="{Binding Age, Mode=TwoWay}"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
</Grid>
<HorizontalStackLayout Grid.Row="2" HorizontalOptions="End">
<Button
Grid.Row="2"
Margin="0,5"
Command="{Binding SaveCommand}"
CornerRadius="0"
WidthRequest="100">
<Button.Triggers>
<DataTrigger
Binding="{Binding IsUpdate}"
TargetType="Button"
Value="True">
<Setter Property="Text" Value="Update" />
</DataTrigger>
<DataTrigger
Binding="{Binding IsUpdate}"
TargetType="Button"
Value="False">
<Setter Property="Text" Value="Add" />
</DataTrigger>
</Button.Triggers>
</Button>
</HorizontalStackLayout>
<CollectionView
x:Name="myCollectionView"
Grid.Row="3"
ItemsSource="{Binding Students}"
SelectedItem="{Binding SelectStudent}"
SelectionChangedCommand="{Binding ChangeSelectStudentCommand}"
SelectionChangedCommandParameter="{Binding SelectedItem, Source={x:Reference myCollectionView}}"
SelectionMode="Single">
<CollectionView.ItemTemplate>
<DataTemplate>
<Border StrokeThickness="1">
<Grid
Margin="5"
Padding="10"
ColumnDefinitions="100,*">
<Label
Grid.Column="0"
FontAttributes="Bold"
FontSize="18"
Text="{Binding Name}"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
<Label
Grid.Column="1"
FontAttributes="Bold"
FontSize="18"
Text="{Binding Age}"
VerticalOptions="Center"
VerticalTextAlignment="Center" />
</Grid>
</Border>
</DataTemplate>
</CollectionView.ItemTemplate>
</CollectionView>
<HorizontalStackLayout
Grid.Row="4"
HorizontalOptions="End"
VerticalOptions="End">
<Grid ColumnDefinitions="*,*">
<Button
Grid.Column="0"
Margin="0,5"
Command="{Binding DeleteCommand}"
CornerRadius="0"
Text="All Delete"
WidthRequest="100" />
</Grid>
</HorizontalStackLayout>
</Grid>
</ContentPage>
using Maui.SqliteTest.ViewModels;
namespace Maui.SqliteTest
{
public partial class MainPage : ContentPage
{
public MainPage()
{
InitializeComponent();
this.BindingContext = new MainViewModel();
}
}
}
5. ViewModel 구성 (MainViewModel.cs)
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Windows.Input;
using Maui.SqliteTest.Helpers;
using Maui.SqliteTest.Models;
namespace Maui.SqliteTest.ViewModels
{
public class MainViewModel : INotifyPropertyChanged
{
#region INotifyPropertyChanged
public event PropertyChangedEventHandler PropertyChanged;
protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
{
PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
}
#endregion
#region Fields
StudentHelper studentHelper = new StudentHelper();
#endregion
#region Properties
private bool isUpdate = false;
public bool IsUpdate
{
get
{
return this.isUpdate;
}
set
{
this.isUpdate = value;
OnPropertyChanged();
}
}
private string name;
public string Name
{
get
{
return this.name;
}
set
{
this.name = value;
OnPropertyChanged();
}
}
private string age;
public string Age
{
get
{
return this.age;
}
set
{
this.age = value;
OnPropertyChanged();
}
}
private ObservableCollection<StudentModel> students;
public ObservableCollection<StudentModel> Students
{
get
{
if (this.students == null)
{
this.students = new ObservableCollection<StudentModel>();
}
return this.students;
}
set
{
this.students = value;
OnPropertyChanged();
}
}
private StudentModel selectStudent;
public StudentModel SelectStudent
{
get
{
return this.selectStudent;
}
set
{
this.selectStudent = value;
OnPropertyChanged();
}
}
#endregion
#region Commands
public ICommand ChangeSelectStudentCommand => new Command<StudentModel>(p => OnChangeSelectStudentCommand(p));
public ICommand SaveCommand => new Command(p => OnSaveCommand());
public ICommand DeleteCommand => new Command(p => OnDeleteCommand());
#endregion
// Constructor
#region MainViewModel
public MainViewModel()
{
GetStudentList();
}
#endregion
// Command Methods
#region OnSaveCommand
private async void OnSaveCommand()
{
if (this.IsUpdate)
{
this.SelectStudent.Name = this.Name;
this.SelectStudent.Age = this.Age;
int i = await studentHelper.UpdateStudent(this.SelectStudent);
await Application.Current.MainPage.DisplayAlert("Update", "Update Complete", "ok");
this.IsUpdate = false;
}
else
{
StudentModel newStudent = new StudentModel();
newStudent.Name = this.name;
newStudent.Age = this.age;
int i = await studentHelper.AddStudent(newStudent);
await Application.Current.MainPage.DisplayAlert("Save", "Save Complete", "ok");
}
this.Name = "";
this.Age = "";
GetStudentList();
}
#endregion
#region OnDeleteCommand
private async void OnDeleteCommand()
{
foreach (var student in this.Students)
{
await studentHelper.DeleteStudent(student);
}
this.IsUpdate = false;
this.Name = "";
this.Age = "";
}
#endregion
#region OnChangeSelectStudentCommand
private void OnChangeSelectStudentCommand(StudentModel studentModel)
{
this.IsUpdate = true;
if (this.SelectStudent != null)
{
this.Name = this.SelectStudent.Name;
this.Age = this.SelectStudent.Age;
}
}
#endregion
// Methods
#region GetStudentList
private async void GetStudentList()
{
var students = await studentHelper.GetStudentList();
if (students != null)
{
this.Students.Clear();
foreach (var student in students)
{
this.Students.Add(student);
}
}
}
#endregion
}
}

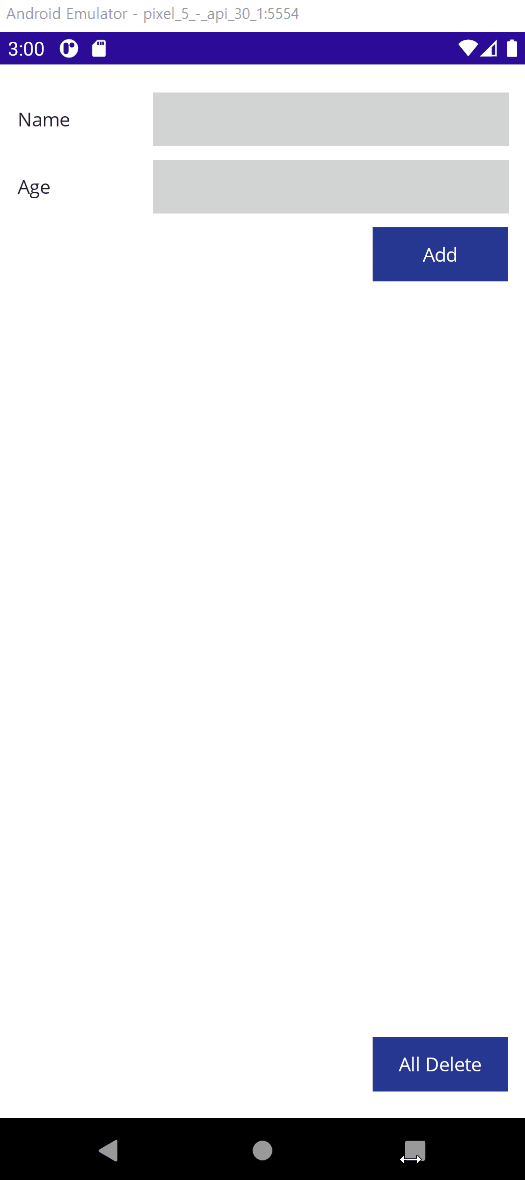

실행결과
[Source]
https://github.com/kei-soft/KJunBlog/tree/master/Maui.SqliteTest
