GridControl 에 데이터 바인딩시 특정 컬럼을 색으로 표시하는 방법입니다.

xaml 코드에 아래 처럼 Colum을 정의하고 Data 로 접근해 Brush Type 필드를 지정합니다.

<dxg:GridColumn
    FieldName="CellColor"
    Header="COLOR"
    HorizontalHeaderContentAlignment="Center">
    <dxg:GridColumn.CellTemplate>
        <DataTemplate>
            <Border Background="{Binding Data.CellColor}" />
        </DataTemplate>
    </dxg:GridColumn.CellTemplate>
</dxg:GridColumn>

ItemModel.cs

using System.Windows.Media;

namespace Wpf.DevGridTest
{
    public class ItemModel
    {
        public Brush CellColor { get; set; }
        public string Name { get; set; }
        public int Age { get; set; }
    }
}

MainWindow.xaml

xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"

<dxg:GridControl
    Grid.Row="3"
    Height="300"
    ItemsSource="{Binding Items}">
    <dxg:GridColumn
        FieldName="CellColor"
        Header="COLOR"
        HorizontalHeaderContentAlignment="Center">
        <dxg:GridColumn.CellTemplate>
            <DataTemplate>
                <Border Background="{Binding Data.CellColor}" />
            </DataTemplate>
        </dxg:GridColumn.CellTemplate>
    </dxg:GridColumn>
    <dxg:GridColumn
        FieldName="Name"
        Header="NAME"
        HorizontalHeaderContentAlignment="Center" />
    <dxg:GridColumn
        FieldName="Age"
        Header="AGE"
        HorizontalHeaderContentAlignment="Center" />
    <dxg:GridControl.View>
        <dxg:TableView
            CellStyle="{StaticResource FocusedCellStyle}"
            RowStyle="{StaticResource FocusedRowStyle}"
            ShowGroupPanel="False"
            ShowGridMenu="TableView_ShowGridMenu"/>
    </dxg:GridControl.View>
</dxg:GridControl>

MainViewModel.cs

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Dynamic;
using System.Runtime.CompilerServices;
using System.Windows.Media;

namespace Wpf.DevGridTest
{
    public class MainViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        public void OnPropertyChanged([CallerMemberName] string name = "") => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(name));

        private ObservableCollection<ItemModel> items;

        public ObservableCollection<ItemModel> Items
        {
            get
            {
                if (this.items == null)
                {
                    this.items = new ObservableCollection<ItemModel>();
                }

                return this.items;
            }
            set
            {
                this.items = value;
                OnPropertyChanged();
            }
        }

        public MainViewModel()
        {
            // Cell Color
            this.Items.Add(new ItemModel() { CellColor = new SolidColorBrush(System.Windows.Media.Colors.Blue), Name = "홍길동", Age = 45 });
            this.Items.Add(new ItemModel() { CellColor = new SolidColorBrush(System.Windows.Media.Colors.Yellow), Name = "유관순", Age = 57 });
            this.Items.Add(new ItemModel() { CellColor = new SolidColorBrush(System.Windows.Media.Colors.Green), Name = "이순신", Age = 60 });
            this.Items.Add(new ItemModel() { CellColor = new SolidColorBrush(System.Windows.Media.Colors.Red), Name = "강감찬", Age = 22 });
            this.Items.Add(new ItemModel() { CellColor = new SolidColorBrush(System.Windows.Media.Colors.Purple), Name = "윤봉길", Age = 15 });
        }
    }
}

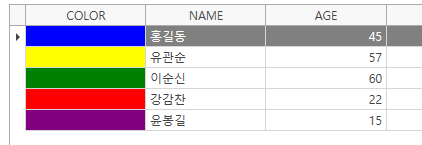

결과

소스
https://github.com/kei-soft/KJunBlog/tree/master/Wpf.DevGridTest
